Lid not closing properly? The 7 most common causes and their solutions.
Introduction
A lid that doesn't seal properly is one of the most common problems when filling food jars. The consequences range from loss of vacuum and reduced shelf life to customer complaints or even product recalls.
The good news: In most cases, the problem is not with the capping machine itself. Often, it's the interplay between the lid, the jar, the product, and the process settings that determines whether the seal is secure.
This article explains the causes of wear and tear and how to avoid them permanently.
Short answer
A lid often fails to close properly because several factors are not optimally coordinated. These include, among other things, an incorrect closing torque, unsuitable lids or jars, dirty sealing surfaces, an incorrect product temperature, or a capping machine that is not properly adjusted. For a secure closure, all components of the production line must work together perfectly.
How can you recognize a wear problem?
Not every wear and tear problem is immediately visible. Typical signs include:
- The lid is loose.
- The lid can be easily opened by hand.
- Vacuum is either missing or insufficient
- Product leaks after pasteurization
- Lid warps
- Safety button remains up
- Complaints due to leaks
The 7 most common causes
1.
Incorrect locking torque
If the torque is too low, the lid won't fit tightly enough. If it's too high, the seal can be damaged or the lid deformed.
2.
Unsuitable or damaged lids
Even minor damage to the seal or manufacturing tolerances can prevent a secure closure.
3.
Differences in the lenses
Deviations in glass height, thread or mouth diameter significantly affect the sealing process.
4.
Contaminated sealing surfaces
Product residue on the glass rim prevents the seal from sitting properly. This leads to leaks or vacuum loss.
5.
Incorrect product temperature
Especially during hot filling, the product temperature affects the subsequent vacuum formation. If it is too low or too high, the seal can be compromised.
6.
Incorrectly adjusted sealing machine
Incorrectly adjusted closing heads or worn components often lead to uneven closing results.
7.
Errors throughout the entire production process
Not every problem lies directly with the capping machine. Transport speed, glass guidance, or uneven product feed can also negatively affect the capping process.
What consequences could arise?
A faulty closure can have significant economic consequences:
- Customer complaints
- Reduced shelf life
- Loss of vacuum
- Quality problems
- Production shutdowns
- Increased Committee
- In the worst case, product recalls.
How can problems with wear and tear be avoided?
A permanently secure seal begins as early as the planning stage of the production line.
Important factors include:
- high-quality lids and jars
- clean glass edges
- correctly set closing torque
- appropriate product temperature
- regular maintenance of the capping machine
- continuous quality controls
- optimal coordination of all process steps
When is the problem not with the capping machine?
In practice, the capping machine is often suspected as the primary source of errors. In reality, many capping problems arise earlier in the process.
Examples:
- excessive product level
- Product residue on the rim of the glass
- unsuitable lid quality
- incorrect product temperature
- different glass qualities
That's why at Machines4FoodIndustry we always look at the entire production line and not just a single machine.
✅ Checklist: 7 points you should check immediately
If the lid doesn't close properly, first check:
☐ Is the correct torque set?
☐ Are the lid and seal undamaged?
☐ Are the edges of the glass clean?
☐ Do the glasses meet the specifications?
☐ Is the product at the correct temperature?
☐ Is the capping machine correctly adjusted?
☐ Is the vacuum checked regularly?
💡 Expert tip from Machines4FoodIndustry
"Many manufacturers initially invest in a new capping machine, even though the actual cause lies elsewhere. Our experience shows that capping problems usually arise from the interaction of several process steps. That's why we always analyze the entire production line – from product feeding to vacuum control."
- Paweł Grabiec
Managing Director Marba Sp. z o.o.
Engineering partner of Machines4FoodIndustry
Suitable solutions
Filling machines for chunky foods
Piston fillers and dosing systems for liquid and viscous products

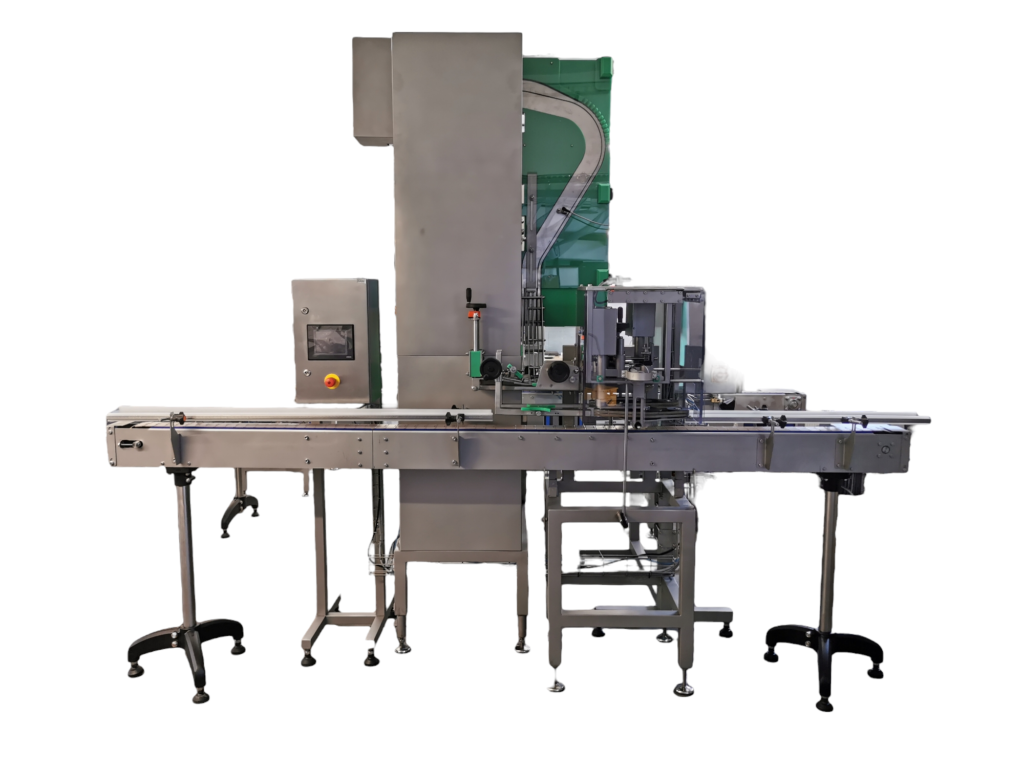

Lid feeding systems
Conveyor technology for production lines
CUSTOMER STORY
Truffle factory
From manual production to a flexible premium line.
Individual production solution for high-quality truffle specialties with maximum flexibility for a wide variety of products and glass formats.
📈 +300% productivity
Premium quality, improved process hygiene and 300% more productivity
FAQs
Why doesn't my lid close properly despite having a new sealing machine?
A new capping machine alone doesn't always solve the problem. Often the causes lie with the lids, jars, product temperature, or process control.
What role does product temperature play?
When hot filling, the correct temperature is crucial for subsequent vacuum formation and a secure seal.
Can a damaged lid prevent a vacuum from forming?
Yes. Even minor damage to the seal or lid can prevent a sufficient vacuum from being created.
How often should a capping machine be checked?
Regular maintenance and inspection of the sealing heads and torque help to ensure consistent sealing results.
How can the quality of the closure be reliably controlled?
In addition to visual inspections, torque and vacuum tests should be carried out regularly to ensure process reliability in the long term.
